Gradle Setup

This guide covers the complete Gradle setup for Shield, including repository configuration, plugin application, and protection configuration.

Requirements

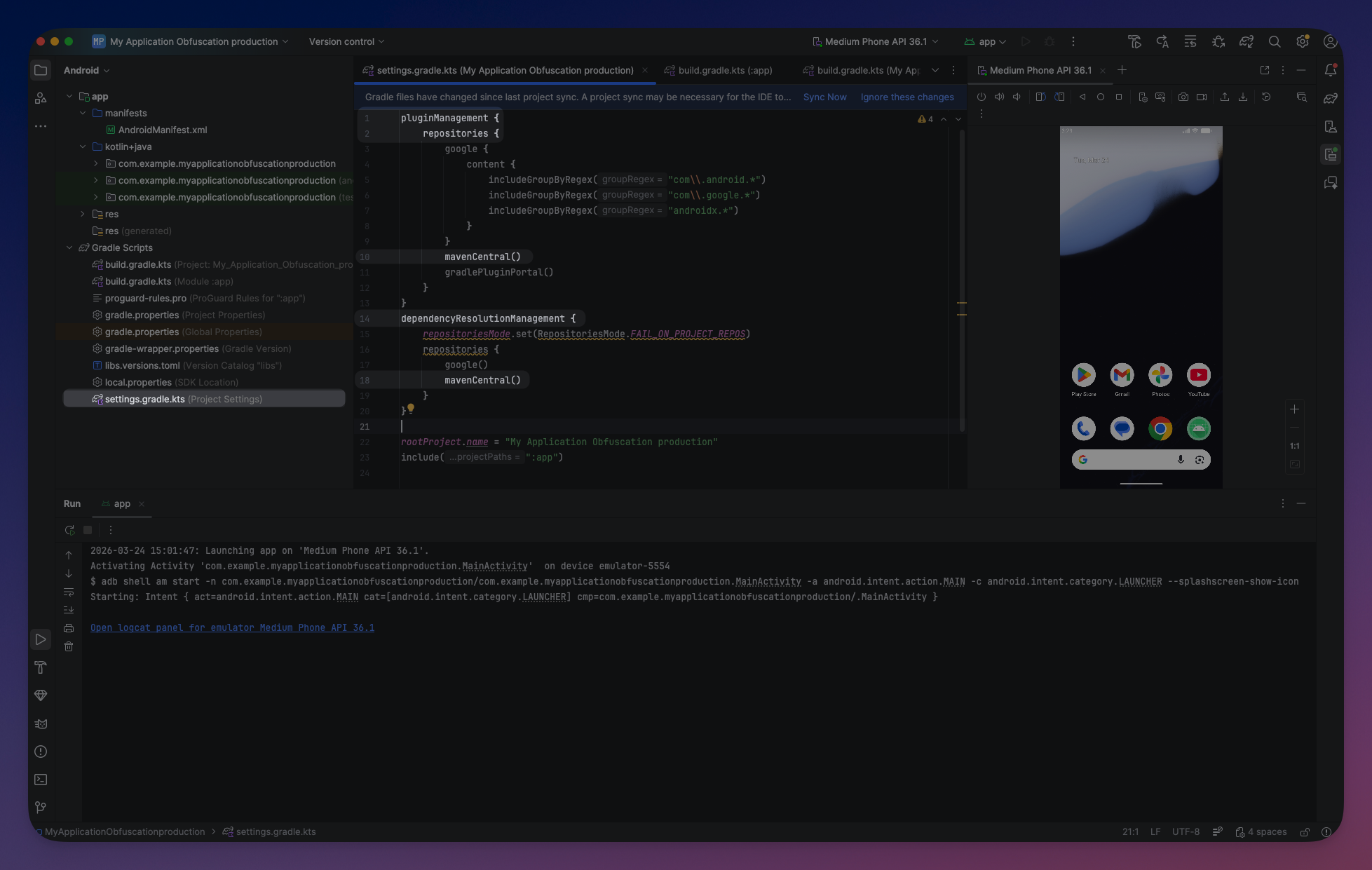

Step 1: Configure Repositories

Shield is published on Maven Central. Add the standard repositories to your settings.gradle.kts if you don't have them already:

Kotlin DSL

// settings.gradle.kts
pluginManagement {
    repositories {
        google()
        mavenCentral()
        gradlePluginPortal()
    }
}

dependencyResolutionManagement {
    repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS)
    repositories {
        google()
        mavenCentral()
    }
}

// settings.gradle.kts
pluginManagement {
    repositories {
        google()
        mavenCentral()
        gradlePluginPortal()
    }
}

dependencyResolutionManagement {
    repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS)
    repositories {
        google()
        mavenCentral()
    }
}

Groovy DSL

// settings.gradle
pluginManagement {
    repositories {
        google()
        mavenCentral()
        gradlePluginPortal()
    }
}

dependencyResolutionManagement {
    repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS)
    repositories {
        google()
        mavenCentral()
    }
}

// settings.gradle
pluginManagement {
    repositories {
        google()
        mavenCentral()
        gradlePluginPortal()
    }
}

dependencyResolutionManagement {
    repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS)
    repositories {
        google()
        mavenCentral()
    }
}

Click to expand

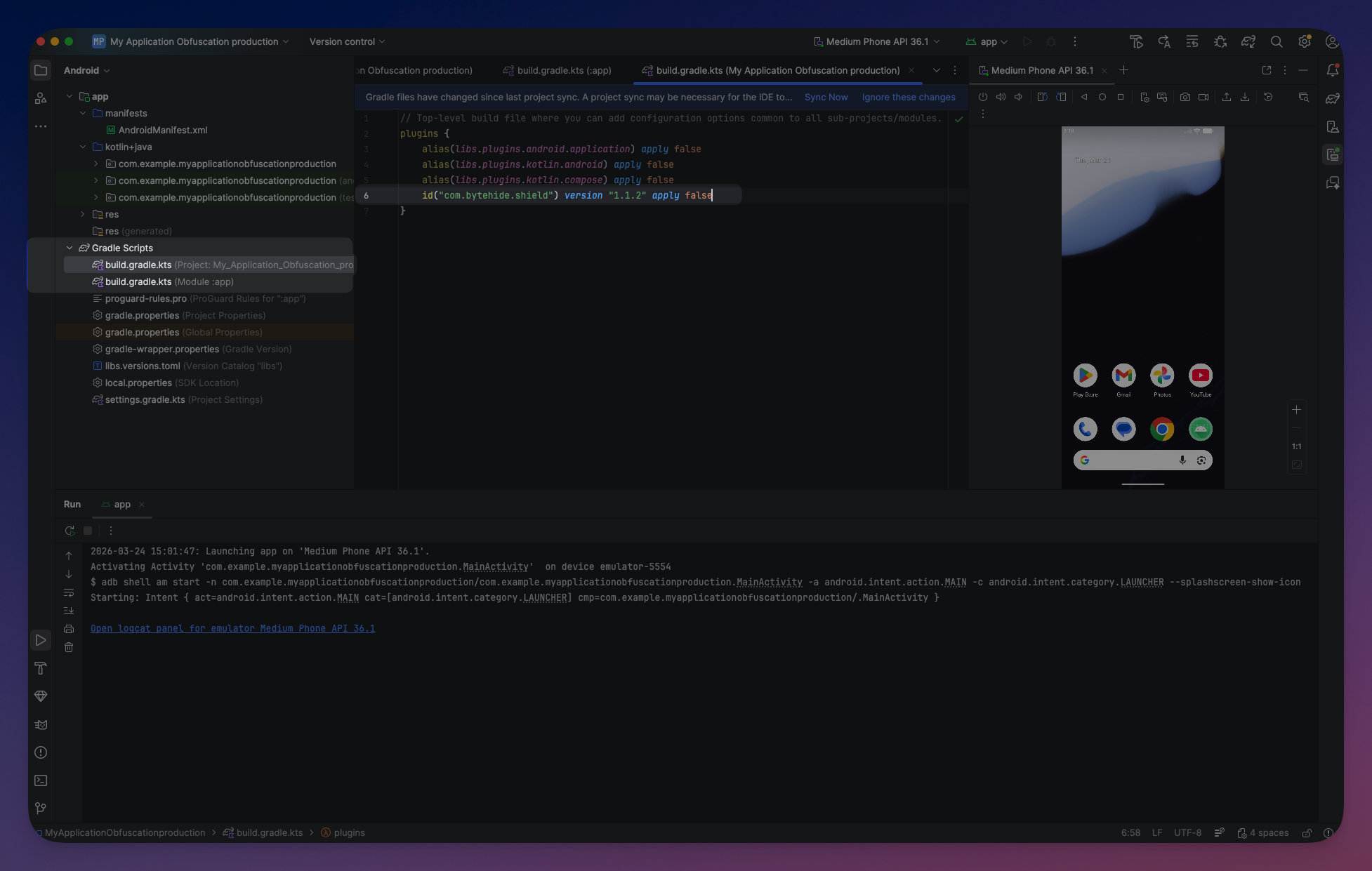

Step 2: Apply the Plugin

Add the Shield plugin to your app module's build file:

Kotlin DSL

// app/build.gradle.kts
plugins {
    id("com.android.application")
    id("org.jetbrains.kotlin.android")
    id("com.bytehide.shield") version "1.1.5"
}

// app/build.gradle.kts
plugins {
    id("com.android.application")
    id("org.jetbrains.kotlin.android")
    id("com.bytehide.shield") version "1.1.5"
}

Groovy DSL

// app/build.gradle
plugins {
    id 'com.android.application'
    id 'org.jetbrains.kotlin.android'
    id 'com.bytehide.shield' version '1.1.5'
}

// app/build.gradle
plugins {
    id 'com.android.application'
    id 'org.jetbrains.kotlin.android'
    id 'com.bytehide.shield' version '1.1.5'
}

Shield supports both com.android.application and com.android.library modules. Apply the plugin to any module that contains code you want to protect.

Click to expand

Step 3: Configure Shield

Add the shield block with your project token and desired protections. The simplest way to get started is using a preset:

Kotlin DSL

shield {
    projectToken = "your-project-token"
    preset("mobile")
}

shield {
    projectToken = "your-project-token"
    preset("mobile")
}

Groovy DSL

shield {
    projectToken = "your-project-token"
    preset "mobile"
}

shield {
    projectToken = "your-project-token"
    preset "mobile"
}

Presets

Presets configure all protections at once. You can override individual protections after applying a preset:

• mobile — Designed for most Android applications. Enables string encryption, constant mutation, debug removal, and anti-debug. Leaves name obfuscation off (safe for apps using reflection/serialization).

• server — For backend JVM applications. Enables string encryption, constant mutation, debug removal, and name obfuscation. Leaves runtime protections off since servers are not exposed to reverse engineering.

• aggressive — Maximum protection. Enables all 7 DSL protections plus repackageClasses. Use for security-critical applications (fintech, healthcare, DRM).

shield {
    projectToken = "your-project-token"
    preset("mobile")

    // Override individual protections after preset
    protections {
        controlFlowObfuscation = true
    }
}

shield {
    projectToken = "your-project-token"
    preset("mobile")

    // Override individual protections after preset
    protections {
        controlFlowObfuscation = true
    }
}

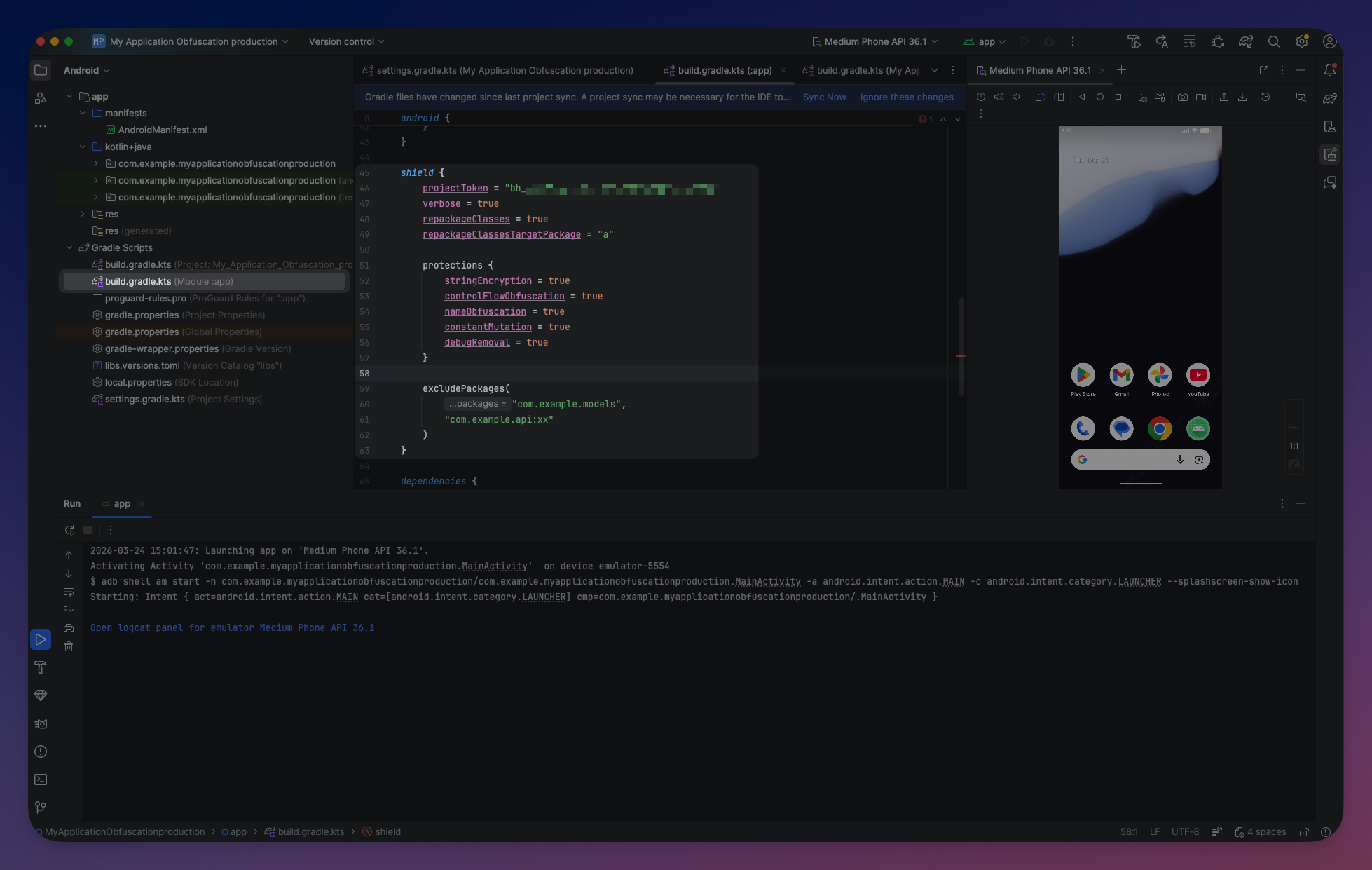

Manual Configuration

For full control, configure each protection individually:

shield {
    projectToken = "your-project-token"
    verbose = true

    protections {
        stringEncryption = true
        constantMutation = true
        debugRemoval = true
        nameObfuscation = false
        controlFlowObfuscation = false
        antiDebug = true
        antiTamper = false
    }

    excludePackages("com.example.api", "com.example.models")
}

shield {
    projectToken = "your-project-token"
    verbose = true

    protections {
        stringEncryption = true
        constantMutation = true
        debugRemoval = true
        nameObfuscation = false
        controlFlowObfuscation = false
        antiDebug = true
        antiTamper = false
    }

    excludePackages("com.example.api", "com.example.models")
}

Click to expand

Step 4: Build

Run a release build:

./gradlew assembleRelease

./gradlew assembleRelease

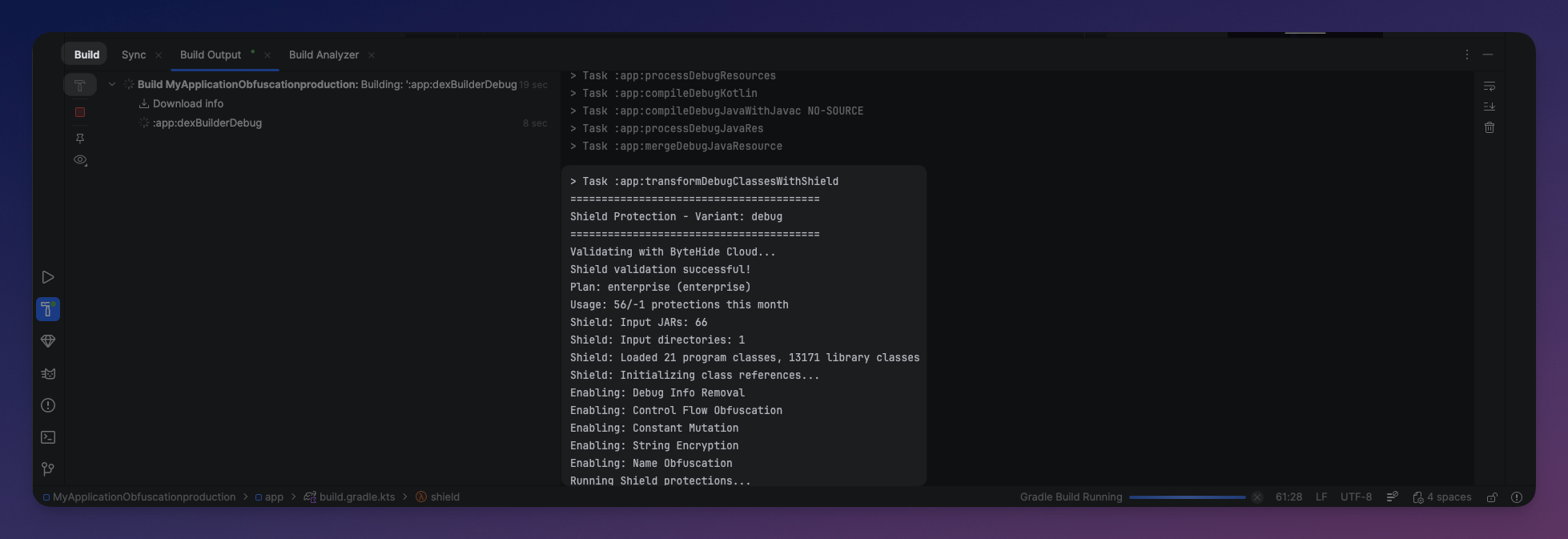

Shield runs automatically during the build and protects the release variant. If verbose = true, you will see Shield's output in the build log confirming protections were applied.

What Gets Obfuscated

By default, Shield only processes your project's own compiled source code. Dependency JARs (third-party libraries) are not obfuscated and are loaded only for reference resolution. This prevents issues when dependencies contain pre-obfuscated code or fragile bytecode that breaks when transformed.

If you need to obfuscate a specific dependency (e.g., an internal company library distributed as a JAR), use includePackages():

shield {
    projectToken = "your-token"
    preset("mobile")

    // Also obfuscate this dependency
    includePackages("com.mycompany.internal-lib")
}

shield {
    projectToken = "your-token"
    preset("mobile")

    // Also obfuscate this dependency
    includePackages("com.mycompany.internal-lib")
}

Without includePackages, only your project's source code is obfuscated. This is the safe default for most projects.

AGP Compatibility

Shield automatically detects your Android Gradle Plugin version and uses the appropriate integration:

No configuration is required — Shield detects the AGP version and uses the correct integration automatically.

Token Resolution

The project token is resolved in priority order:

1. Gradle DSL (highest priority):

   Kotlin

   Copy

   shield { projectToken = "explicit-token" }

   shield { projectToken = "explicit-token" }

2. Environment variable (fallback):

   Bash

   Copy

   export BYTEHIDE_PROJECT_TOKEN="your-token"

   export BYTEHIDE_PROJECT_TOKEN="your-token"

For CI/CD, set the environment variable in your pipeline secrets. See CI/CD Integration for examples.

Auto-Excluded Packages

Shield automatically excludes known library and framework packages. You do not need to manually exclude these:

You only need to add exclusions for your own packages that use reflection or serialization. See Excluded Packages for details.

Verify Installation

After configuring Shield, run a build to verify:

./gradlew assembleRelease

./gradlew assembleRelease

Click to expand
